解码/秒：最多1000
读取范围：2至10“（51至254 mm）
广阔的扫描角度
IP54外壳

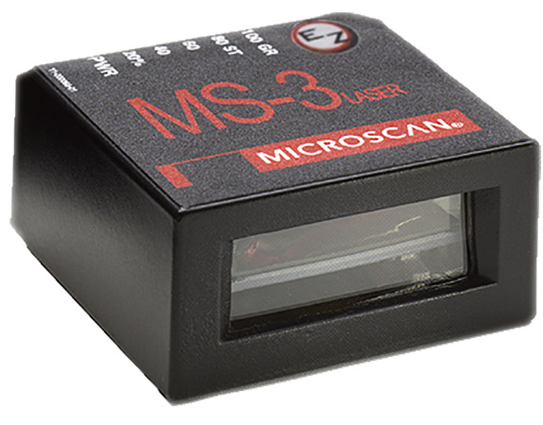

MS-3激光条码扫描仪在嵌入式紧凑型条码扫描器中提供快速的读取性能。 70度的宽扫描角度与超紧凑尺寸和灵活安装相结合。
高性能和灵活性使MS-3成为嵌入式仪器可靠读取的最佳选择。
紧凑轻巧：1.75英寸（44.5毫米）方形，85英寸（21.6毫米）高的扫描仪重量只有57克，便于安装在机器人设备或狭小的空间。
高扫描速度：可调节扫描速度从每秒300到1000个解码，欧姆龙迈思肯世界级的解码算法确保每次都能准确读取。
扫描角度宽：超过70度的宽扫描角度和工厂定制的焦点加起来可以节省系统内的空间，从而允许更大的灵活性定位。
可见指示灯：扫描仪顶部的照明LED提供对扫描仪性能的视觉确认。
实时控制：输入包括触发信号，“新主控”输入和用于复位计数器或释放输出的可编程输入。输出可以被配置为在包括匹配码和诊断操作的各种条件下激活。
规格
Mechanical
Depth: 1.75" (44.5 mm)
Width: 1.75" (44.5 mm)
Height: .85" (21.6 mm)
Weight (standard case): 2 oz. (57 g)
Scanning Parameters
Options: single line, fixed raster
Scan rate: Adjustable from 300 to 1000 scans/second, default=500
Scan width angle: >70°
Pitch: ±50°
Skew: ±40°
Label contrast: 25% min. @ 650 nm
Comunication
Interface: RS-232, RS-422/485 (up to 115.2k), Keyboard Wedge, USB
Connector
Type: 3 ft. cable terminated with High Density 15-pin D-Sub socket connector
Symbologies
Code 39, Codabar, Code 128, I 2 of 5, Code 93, UPC/EAN, Pharmacode, PDF417 (option)
配件
| Accessories | |
| Part Number | Description |
| FIS-0210-0001G | MS-Connect 210, Connectivity Box with Display |
| FIS-0210-0002G | MS-Connect 210, Connectivity Box |
| FIS-0210-0003G | MS-Connect 210, Connectivity Box with Display and Ethernet |
| FIS-0210-0004G | MS-Connect 210, Connectivity Box with Ethernet |
| 98-000013-04 | Relay Module, 120VAC, 3 Amp Output, Series 70, Type SM, for MS-Connect 210 and MS-890 |
| 98-000013-05 | Relay Module, 240VAC, 3 Amp Output, Series 70, Type SM for MS-Connect 210 and MS-890 |
| 98-000013-06 | Relay Module, 24VDC, 3 Amp Output, Series 70, Type SM for MS-Connect 210 and MS-890 |
| 61-000127-02 | Cable, MS-2 to MS-Connect 210, 6 ft |
| FIS-0001-0030G | IB-3PC Keyboard Wedge/Interface Box |
| 98-000051-01 | IC-3USB, USB Conversion Kit |
| FIS-0001-0035G | IC-332, Connects MS-2 to IB-131 |
| 99-000018-01 | IB-131, Interface Box |
| 98-000039-02 | Kit, IB-152, DB25 Plug Terminal Block, DB25 Gender Changer |
| 61-300026-03 | Cable, Communication, DB-25 Plug to DB-9 Socket, 6 ft |
| 61-000010-02 | Cable, Communication, DB-9 Socket to DB-9 Socket, 6 ft |
| 61-000011-02 | Cable, MS-820 to IB-131 (also use for MS-2, 3, 4, 9, 710 and MINI Extension) |
| 61-100029-03 | Cable, IB-131 Daisy Chain, 1 ft |
| 20-500013-01 | DeviceNet Protocol Box |
| Power Supplies | |
| 97-000002-01 | Power Supply, 90-264 VAC,+5VDC, USA /Euro Plug (use with IB-3PC) |
| 97-100004-15 | Power Supply, 90-264 VAC,+24VDC USA /Euro Plug (only use with IC-332) |
| Mounting and Connectors | |
| 98-000048-01 | Mounting Arm/Adapter Kit, 4 inch, MS-2, MS-3 |
| 98-000054-01 | Kit, Mounting Stand Base Plate, MS-2, MS-3 |
| 98-000053-01 | Extension Kit, 4 inch, MS-2, MS-3 |
| 98-000053-02 | Mounting Arm Extension Kit, 3 inch, MS-2, MS-3 |
| 98-000060-01 | Kit, Bracket, Side Mount, MS-2, MS-3 |
| 98-000059-01 | Kit, Bracket, Angle Mount, MS-2, MS-3 |
| 98-000057-01 | Kit, Bracket, Through Hole Mount, MS-2, MS-3 |
| 98-000058-02 | Kit, Extended Right Angle Mirror, MS-2, MS-3 |
| 98-000061-03 | MS-2, MS-3 to MS-520/MS-525, Bracket Conversion Kit |
| 20-610024-01 | Trigger Connector, 4-pin Plug (screw terminal and field wireable for custom wiring into IB-131) |
| 20-610020-01 | Power Connector, 3-pin Socket (screw terminal and field wireable for custom wiring into IB-131) |
| Package Detector/Sensor | |
| 99-000017-01 | Photo Sensor, Visible, NPN, DARK ON (for use with IB-131) |
| 99-000017-02 | Photo Sensor, Visible, NPN, LIGHT ON (for use with IB-131) |
| Software/Manuals | |
| 37-000001-01 | TOOLS CD, User’s Manuals, ESP Software |
型号
| MS-3 Standard | |
| Part Number | Description |
| FIS-0003-0001G | Laser, Single Line, Low Density |
| FIS-0003-0002G | Laser, Single Line, High Density |
| FIS-0003-0003G | Laser, Raster, Low Density |
| FIS-0003-0004G | Laser, Raster, High Density |
| FIS-0003-0005G | Laser, Single Line, Low Density, Right Angle |
| FIS-0003-0007G | Laser, Raster, Low Density, Right Angle |
